ASME DIN Flange Internal Gear Pump For Coatings 0.01-363 M3/H Capacity

  • ASME DIN Flange Internal Gear Pump For Coatings 0.01-363 M3/H Capacity
Place of Origin Beijing, China
Brand Name Beijing VP
Certification ISO Certificate; 3A Certificate
Model Number Customized according to demand
Minimum Order Quantity 1
Packaging Details Wooden Case
Delivery Time 60 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure Gear Pump Capacity 0.01～363 M3/h
Place Of Origin Beijing, China Pressure Range 0.1-16 Bar
Viscosity 0.1～440, 000 CSt Port Type ASME Or DIN Flanges ,NPT ,SAE Ports
Highlight

asme flange bitumen gear pumps

,

asme DIN flange bitumen gear pump

,

asme DIN bitumen gear pump
Leave a Message
Product Description

UY-250SS - 145*75*60 - How it works - BJVP Internal Gear Pump



Overview:



Internal gear pumps are positive displacement specially designed to handle high viscosity liquids. They are equipped with casings that can be positioned to meet common piping configurations and they have only two mobile parts that make its maintenance easier.



Liquid enters the suction port between the rotor and idler teeth. Liquid travels through the pump between the teeth of the "gear-within-a-gear" principle. The crescent shape divides the liquid and acts as a seal between the suction and discharge ports. The pump head is now nearly flooded, just prior to forcing the liquid out of the discharge port. Intermeshing gears of the idler and rotor form locked pockets for the liquid which assures volume control. Rotor and idler teeth mesh completely to form a seal equidistant from the discharge and suction ports. This seal forces the liquid out of the discharge port.



Application:



Lubricants, Fuel Oil, Grease, Asphalt, Bitumen, Gluse,Polymer,Resin,Chemical Fiber, Coatings, Detergents, High viscosity product or high temperature product.



Parameters:



Port size 0.5”-10”
Capacity 0.01～363 m3/h
Pressure range 0.1～16 Bar
Temperature -85～430℃
Viscosity 0.1～440, 000 cSt
Material D.I ,WCB,304SS,316SS,316L,Duplex SS
Port Type ASME or DIN Flanges ,NPT ,SAE ports



Character:



Adjustable clearance, easy satisfied with the changable viscosity ;Enlarged seal chamber for multi type seal interchange ; Enlarged bearing housing for quickly maintenance.

Available Solution:

Packing seal,Mechanical Seal,Cartridge type seal , all kinds of seal types are interchangeable, enlarged bearing housing design for future replacement and quickly maintenance.

Magnetic None Seal pump is also available.



Internal Safety valve , heating jacket,electric heating rod can be supplied.



BJVP can provide a variety of material selection,working scope to meet with application requirement.



Picture:

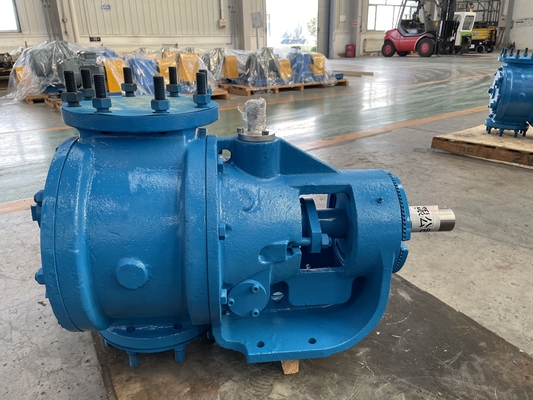

ASME DIN Flange Internal Gear Pump For Coatings 0.01-363 M3/H Capacity 0
