Bitumen Detergents Chemical Gear Pumps ASME Or DIN Flanges

  • Bitumen Detergents Chemical Gear Pumps ASME Or DIN Flanges
Place of Origin Beijing, China
Brand Name Beijing VP
Certification ISO Certificate; 3A Certificate
Model Number Customized according to demand
Minimum Order Quantity 1
Packaging Details Wooden Case
Delivery Time 60 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Capacity 0.01～363 M3/h
Place Of Origin Beijing, China Temperature -85～430℃
Viscosity 0.1～440, 000 CSt Port Type ASME Or DIN Flanges ,NPT ,SAE Ports
Highlight

Detergents Chemical Gear Pumps

,

Bitumen Chemical Gear Pumps

,

gear oil transfer pump
Leave a Message
Product Description

UH-40CI - 65*20*25 - 40KG - BJVP Internal Gear Pump



Overview:



There are two basic designs of gear pump: external and internal (Figure 1). An external gear pump consists of two identical, interlocking gears supported by separate shafts. An internal gear pump operates on the same principle but the two interlocking gears are of different sizes with one rotating inside the other. The larger gear (the rotor) is an internal gear i.e. it has the teeth projecting on the inside.



Application:

Lubricants, Fuel Oil, Grease, Asphalt, Bitumen, Gluse,Polymer,Resin,Chemical Fiber, Coatings, Detergents, High viscosity product or high temperature product.



Parameters:



Port size 0.5”-10”
Capacity 0.01～363 m3/h
Pressure range 0.1～16 Bar
Temperature -85～430℃
Viscosity 0.1～440, 000 cSt
Material D.I ,WCB,304SS,316SS,316L,Duplex SS
Port Type ASME or DIN Flanges ,NPT ,SAE ports



Character:



Adjustable clearance, easy satisfied with the changable viscosity ;Enlarged seal chamber for multi type seal interchange ; Enlarged bearing housing for quickly maintenance.

Available Solution:

Packing seal,Mechanical Seal,Cartridge type seal , all kinds of seal types are interchangeable, enlarged bearing housing design for future replacement and quickly maintenance.

Magnetic None Seal pump is also available.



Internal Safety valve , heating jacket,electric heating rod can be supplied.



BJVP can provide a variety of material selection,working scope to meet with application requirement.



Picture:

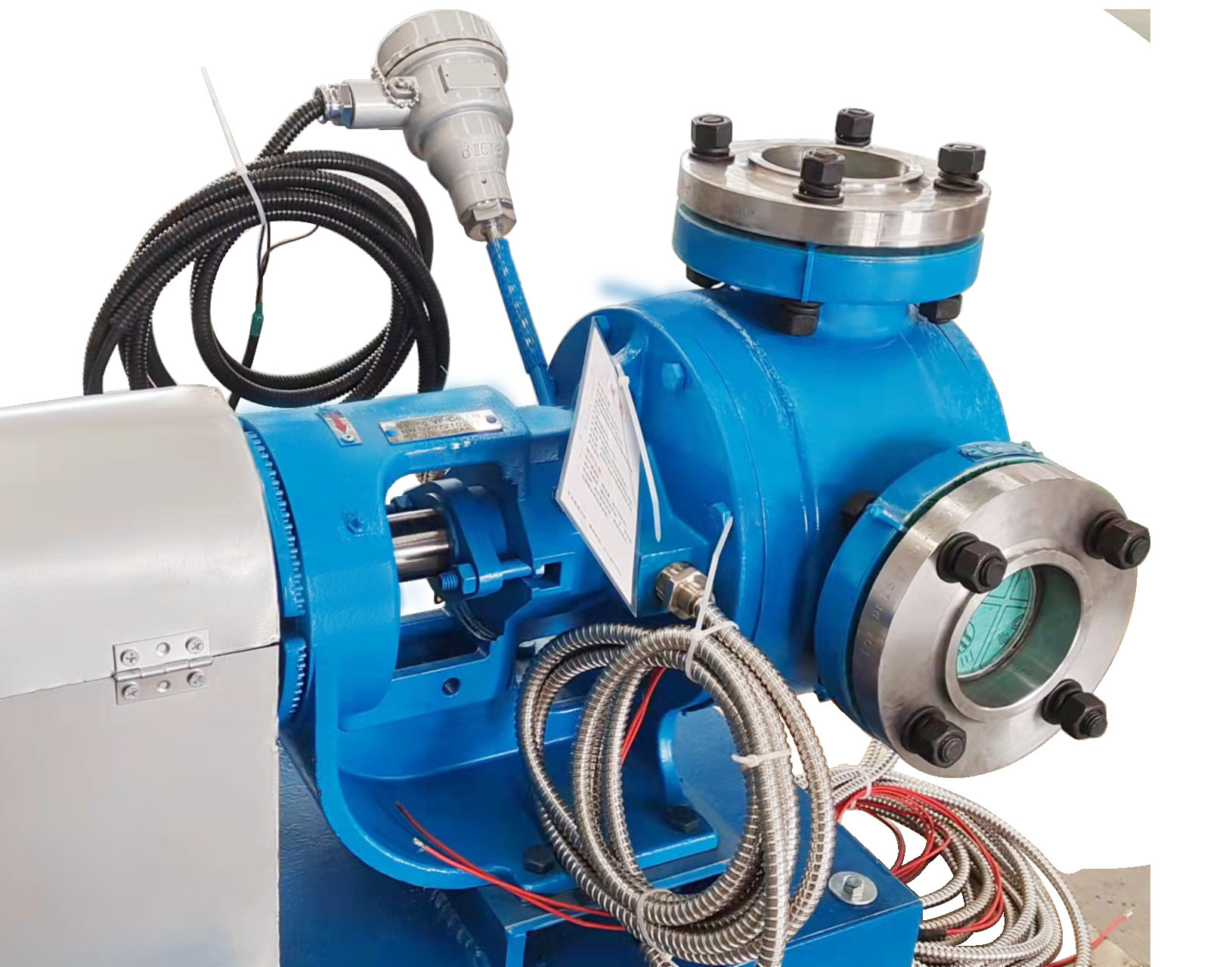

Bitumen Detergents Chemical Gear Pumps ASME Or DIN Flanges 0
