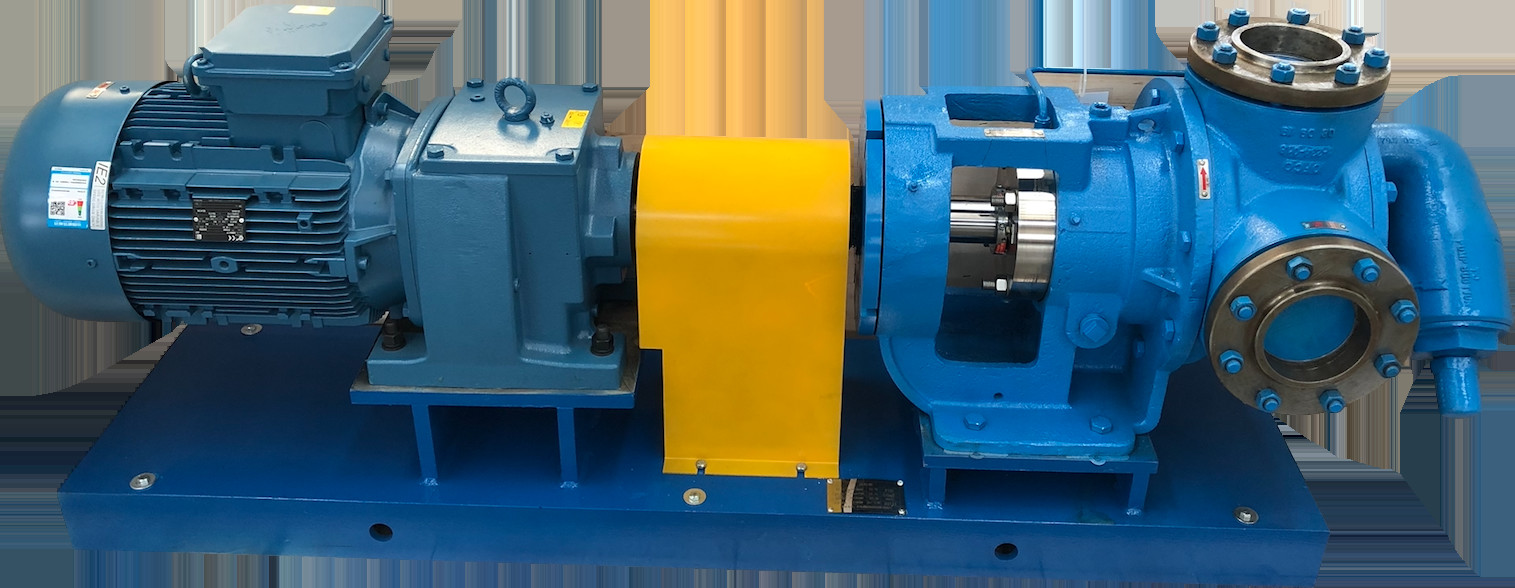

DIN NPT Internal Gear Oil Pump Oil Transfer Chemical Double Gear Pump
| Brand Name | Beijing VP |
|---|---|
| Minimum Order Quantity | 1 set |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | D.I ,WCB,304SS,316SS,316L,Duplex SS | Capacity | 0.01～363 M3/h |
|---|---|---|---|
| Pressure Range | 0.1～16 Bar | Temperature | -85～430℃ |
| Viscosity | 0.1～440, 000 CSt | Port Type | ASME Or DIN Flanges ,NPT ,SAE Ports |
| Port Size | 0.5”-10” | ||
| Highlight | DIN NPT Internal Gear Oil Pump,NPT DIN Internal Gear Oil Pump,oil transfer chemical double gear pump |
||
Product Description
BJVP has more than two decade of experience and continuous improvement the VP gear pump ,it performs satisfactory and extremely stable.VP internal gear pump can be widely used to transfer all kinds of fluid ,especially large viscosity range medium, high temperature or high viscosity ,low NPSH chemicals.
Application:
Lubricants, Fuel Oil, Grease, Asphalt, Bitumen, Gluse,Polymer,Resin,Chemical Fiber, Coatings, Detergents, High viscosity product or high temperature product.
Working Scope:
| Port size | 0.5”-10” |
| Capacity | 0.01～363 m3/h |
| Pressure range | 0.1～16 Bar |
| Temperature | -85～430℃ |
| Viscosity | 0.1～440, 000 cSt |
| Material | D.I ,WCB,304SS,316SS,316L,Duplex SS |
| Port Type | ASME or DIN Flanges ,NPT ,SAE ports |
Character:
Adjustable clearance, easy satisfied with the changable viscosity ;Enlarged seal chamber for multi type seal interchange ; Enlarged bearing housing for quickly maintenance.
Available Solution:
Packing seal,Mechanical Seal,Cartridge type seal , all kinds of seal types are interchangeable, enlarged bearing housing design for future replacement and quickly maintenance.
Magnetic None Seal pump is also available.
Internal Safety valve , heating jacket,electric heating rod can be supplied.
BJVP can provide a variety of material selection,working scope to meet with application requirement.
