Product Details
Material D.I ,WCB,304SS,316SS,316L,Duplex SS Capacity 0.01～363 M3/h
Pressure Range 0.1～16 Bar Viscosity 0.1～440, 000 CSt
Place Of Origin Beijing, China Condition New
Highlight

High Viscosity Lubricating Oil Transfer Pump

,

Gear Lube Transfer Pump

,

fuel oil gear pump
Leave a Message
Product Description

What is Internal Gear Pump -  BJVP Internal Gear Pump



Overview:



Internal Gear Pumps differ from external gear pump in the arrangement of gears. An internal gear pump also consists of 2 gears, but one of the gear is internal gear and the other is commonly used spur gear. Both the gear rotates in the same direction.

BJVP has more than two decade of experience and continuous improvement the VP gear pump ,it performs satisfactory and extremely stable.VP internal gear pump can be widely used to transfer all kinds of fluid ,especially large viscosity range medium, high temperature or high viscosity ,low NPSH chemicals.







Application:

Lubricants, Fuel Oil, Grease, Asphalt, Bitumen, Gluse,Polymer,Resin,Chemical Fiber, Coatings, Detergents, High viscosity product or high temperature product.



Parameters:



Port size 0.5”-10”
Capacity 0.01～363 m3/h
Pressure range 0.1～16 Bar
Temperature -85～430℃
Viscosity 0.1～440, 000 cSt
Material D.I ,WCB,304SS,316SS,316L,Duplex SS
Port Type ASME or DIN Flanges ,NPT ,SAE ports



Character:



Adjustable clearance, easy satisfied with the changable viscosity ;Enlarged seal chamber for multi type seal interchange ; Enlarged bearing housing for quickly maintenance.

Available Solution:

Packing seal,Mechanical Seal,Cartridge type seal , all kinds of seal types are interchangeable, enlarged bearing housing design for future replacement and quickly maintenance.

Magnetic None Seal pump is also available.



Internal Safety valve , heating jacket,electric heating rod can be supplied.



BJVP can provide a variety of material selection,working scope to meet with application requirement.



Picture:

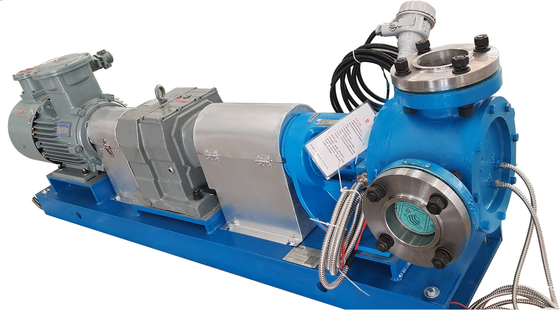

High Viscosity Lubricating Oil Transfer Pump Gear Lube Transfer Pump 0
