| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden Case |
| Delivery Time | 60 days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Internal Gear Pump | Capacity | 0.01～363 M3/h |
|---|---|---|---|
| Place Of Origin | Beijing, China | Temperature | -85～430℃ |
| Viscosity | 0.1～440, 000 CSt | Port Type | ASME Or DIN Flanges ,NPT ,SAE Ports |
| Highlight | Chemical Fiber Internal Gear Pump,Gear Lubrication Pump,lubrication gear pump |
||
Product Description
UF-40CI - 41*20*20 - BJVP Internal Gear Pump
Overview:
Liquid enters the suction port between the rotor (large exterior gear) and idler (small interior gear) teeth. The arrows indicate the direction of the pump and liquid.
Liquid travels through the pump between the teeth of the "gear-within-a-gear" principle. The crescent shape divides the liquid and acts as a seal between the suction and discharge ports.
The pump head is now nearly flooded, just prior to forcing the liquid out of the discharge port. Intermeshing gears of the idler and rotor form locked pockets for the liquid which assures volume control.
Rotor and idler teeth mesh completely to form a seal equidistant from the discharge and suction ports. This seal forces the liquid out of the discharge port.
Application:
Lubricants, Fuel Oil, Grease, Asphalt, Bitumen, Gluse,Polymer,Resin,Chemical Fiber, Coatings, Detergents, High viscosity product or high temperature product.
Parameters:
| Port size | 0.5”-10” |
| Capacity | 0.01～363 m3/h |
| Pressure range | 0.1～16 Bar |
| Temperature | -85～430℃ |
| Viscosity | 0.1～440, 000 cSt |
| Material | D.I ,WCB,304SS,316SS,316L,Duplex SS |
| Port Type | ASME or DIN Flanges ,NPT ,SAE ports |
Character:
Adjustable clearance, easy satisfied with the changable viscosity ;Enlarged seal chamber for multi type seal interchange ; Enlarged bearing housing for quickly maintenance.
Available Solution:
Packing seal,Mechanical Seal,Cartridge type seal , all kinds of seal types are interchangeable, enlarged bearing housing design for future replacement and quickly maintenance.
Magnetic None Seal pump is also available.
Internal Safety valve , heating jacket,electric heating rod can be supplied.
BJVP can provide a variety of material selection,working scope to meet with application requirement.

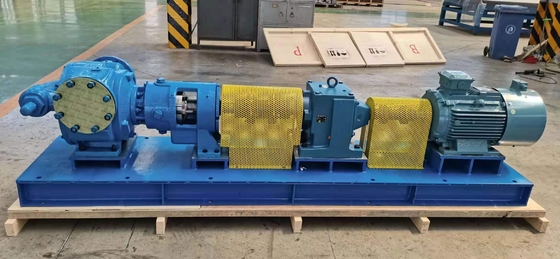

Picture:
