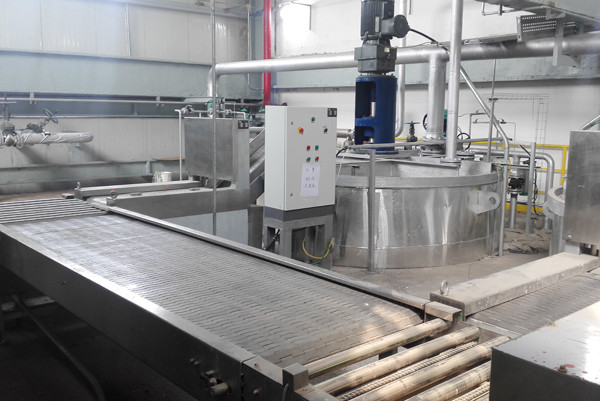

Automatic Viscosity Improver Dissolving System ISO 3A Certificate
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Product Name | Dissolving System |
|---|---|---|---|
| Weight (KG) | Depend On Customization | Conidition | New |
| High Shear Pump Flow Rate | 30m³/h | High Shear Pump Pressure | ≤0.25MPa.A |
| High Light | Automatic Viscosity Improver Dissolving System,ISO Viscosity Improver Dissolving System,3A Viscosity Improver Dissolving System |
||
Product Description
Electrical Instruments - Automatically Dissolve - Dissolving System - BJVP
Overview:
The melting unit and spry driad recovery model allows the quick dissolving in water of the waste powder coming from spry dry filters and of ramaining unused material.
This type of product can also be used in steel working, food, oenological industry and where it is necessary to melt the powder in water quickly.
This machine can dissolve even large quantities of solid material thanks to the combinad aclion of the stirrer with wing profile propeller and horizontal centrifugai pump, which through their dynamic agitation and recirculation function, makes the product homogeneous by removing any crumbs contained in the material.
The whole unit is driven by an electronic weighting instrument and by one PLC which regulate the powder/liquids coming in and the several working and washing cycles.
The carpantry parts, including the tank, the crosspiece and the weigthing cells and the base ara built in stainless steel AlSI 304 .
The pump parts and the hoses submitted to wear are coated with fire proof rubber in order to increase their lasting
Type of VI:
Base oil:10~500cst; Liquid VI 7075: ~1300cst(100℃),~2800 cst(80℃) ; Liquid VI V261: ~1600cst(100℃),~3100 cst(80℃)
Parameters:
| Item | Description | Parameter | Unit | Note | |
| 1 |
High Shear Cutter |
Motor | 20T | 132KW | Inverter Duty |
| 10T | 75KW | Inverter Duty | |||
| 380 | V | ||||
| 5~50 | HZ | ||||
| 2 |
High Shear Pump |
Flow rate | 30 | m³/h | |
| Pressure | ≤0.25 | MPa.A | |||
| Motor | 45 | KW | Inverter Duty | ||
| 380 | V | ||||
| 5~50 | HZ | ||||
| 3 | Transfer Pump | Flow rate | 30 | m³/h | |
| Pressure | 1.1 | MPA | |||
| Motor | 22 | KW | Inverter Duty | ||
| 380 | V | ||||
| 5~50 | HZ | ||||
Product Advantages:
- No VI cutting, direct feeding.
- Integration of cutting and dissolving VI, saving time and cost, safety and environment-friendly.
- Double shear dissolution circulation system, through the dual action of high-speed agitator and shear pump, the product is completely homogenized and dissolved.
- High production efficiency, each dissolving tank can produce 10 or 20 tons of VI, and the production cycle is 6 ~ 8 hours.
Requirements for Users:
- Power Supply: AC 380V/50Hz(Motor, Frequency Transformer)；AC 220V/50Hz(Automatic Control System)
- Air Source:Instrument Air, 6~8Bar；
- Location:Indoor placement
- Foundation:Flat and Solid
