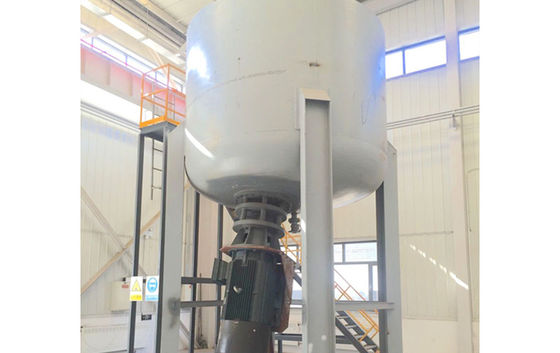

Oil Pipeline Viscosity Improver Dissolving System 30m3/H Pump Flow Rate
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Applicable Industries | Product Transfers In Lubricant Manufacturing, Grease Manufacturing, Specialty Chemical Blending, Chemical And Additive Blending, Paints Manufacturing, Personal Care, Food And Beverage |
|---|---|---|---|
| Weight (KG) | Depend On Customization | Showroom Location | None |
| High Shear Pump Flow Rate | 30m³/h | High Shear Pump Pressure | ≤0.25MPa.A |
| Highlight | Oil Pipeline Viscosity Improver Dissolving System,30m3H Pipeline Dissolving System,30m3/H Pipeline Dissolving System |
||
Product Description
Technical Service - Professional Staff - Dissolving System - BJVP
Overview:
BJVP professional staff will give on-site guidance of installation and commissioning. On-site technical training. In order to enable the normal installation, commissioning, operation and maintenance of equipment in the contract, the supplier is responsible for providing the appropriate technical training. Training plan: the supplier is responsible for training, so that the operator should be able to master the operation and maintenance methods of the system.
Type of VI:
Base oil:10~500cst; Liquid VI 7075: ~1300cst(100℃),~2800 cst(80℃) ; Liquid VI V261: ~1600cst(100℃),~3100 cst(80℃)
Parameters:
| Item | Description | Parameter | Unit | Note | |
| 1 |
High Shear Cutter |
Motor | 20T | 132KW | Inverter Duty |
| 10T | 75KW | Inverter Duty | |||
| 380 | V | ||||
| 5~50 | HZ | ||||
| 2 |
High Shear Pump |
Flow rate | 30 | m³/h | |
| Pressure | ≤0.25 | MPa.A | |||
| Motor | 45 | KW | Inverter Duty | ||
| 380 | V | ||||
| 5~50 | HZ | ||||
| 3 | Transfer Pump | Flow rate | 30 | m³/h | |
| Pressure | 1.1 | MPA | |||
| Motor | 22 | KW | Inverter Duty | ||
| 380 | V | ||||
| 5~50 | HZ | ||||
Product Advantages:
- No VI cutting, direct feeding.
- Integration of cutting and dissolving VI, saving time and cost, safety and environment-friendly.
- Double shear dissolution circulation system, through the dual action of high-speed agitator and shear pump, the product is completely homogenized and dissolved.
- High production efficiency, each dissolving tank can produce 10 or 20 tons of VI, and the production cycle is 6 ~ 8 hours.
Requirements for Users:
- Power Supply: AC 380V/50Hz(Motor, Frequency Transformer)；AC 220V/50Hz(Automatic Control System)
- Air Source:Instrument Air, 6~8Bar；
- Location:Indoor placement
- Foundation:Flat and Solid
