Two Rotary Lobe Positive Displacement Pump Operating Principle
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 set |
| Packaging Details | Wooden Case |
| Delivery Time | 60 days |
| Payment Terms | T/T |
| Supply Ability | 30 Set/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | White | Place Of Origin | Beijing, China |
|---|---|---|---|
| Condition | New | Pressure Range | 0.1～31 Bar |
| Capacity | 0.01～238 M3/h | Material | 304SS |
| Highlight | rotary lobe positive displacement pump,positive displacement lobe pump,two lobe rotary pump |
||
Product Description
R0180P - Operating Principle - BJVP Rotary Lobe Pump
Overview:
The rotary lobe pump is a positive displacement pump. The pumping principle is based on two counter-rotating pumping elements, known as the rotary lobes. These are mounted on two synchronized shafts. The rotational movement of the lobes increases the volume of the pumping chamber on the suction side. This creates suction, which draws the medium into the rotary lobe pump. As the rotational movement continues, the medium is then enclosed in cavities between the rotary lobes and pump housing and it is issued on the discharge side by the pumping chambers as they reduce in size again; the rotary lobe pump conveys the medium directly. Due to their mirror-symmetrical design, rotary lobe pumps are independent of the direction of rotation and can pump in either direction without restriction.
Parameters:
| Port size | 1.5”-8” |
| Capacity | 0.01～238 m3/h |
| Pressure range | 0.1～31 Bar |
| Temperature | -20～180℃ |
| Viscosity | 0.1～1,000,000 cSt |
| Material | D.I ,WCB,304SS,316SS,316L,Duplex SS |
| Port Type | ASME or DIN Flanges , NPT ,SAE ,Tri-clamps,SMS |
Application:
Chemicals,dairy products, non-staple food processing, condiments, cosmetics, automotive paint, ink and other industrial applications.
Character:
Exquisite design and advanced quality control, VP lobe pump has strong reliability and applicability.
The mechanical seal can be removed from the front;Easy maintenance and high efficient repair.Rotor without dead angle is infrequent to be stuck, suitable for all kinds of abbrasive,low viscosity or high viscosity application.
Anti-shearing, Large liquid cavity, smooth transport, can be clean-in-place, easy to maintenance. VP lobe pump is suitable for chemicals, food and beverage and pharmaceutical industry. Multi-options for contact materials. The ports can be installed vertically or horizontally.
Available Solution:
Radial double seal design,can enlarge the seal life for any serious application.
Jacket is available for high temperature request.

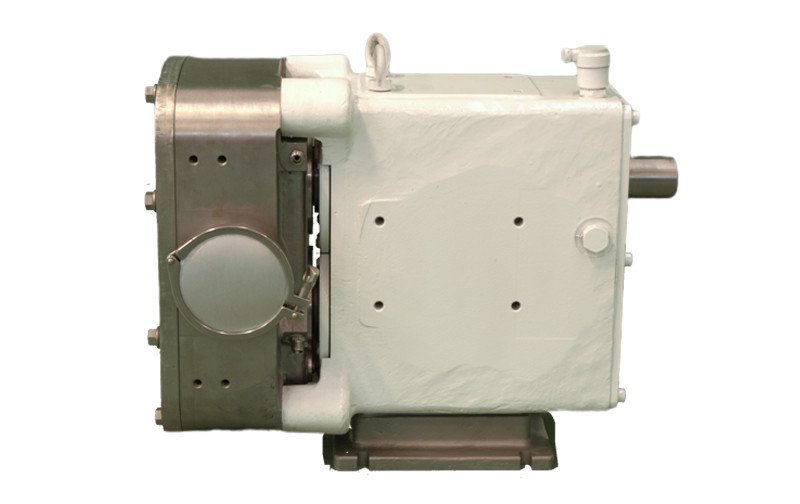

Picture:
