SS Sanitary Rotary Lobe Pump Condiments Hygienic Fluid Handling

  • SS Sanitary Rotary Lobe Pump Condiments Hygienic Fluid Handling
Place of Origin Beijing, China
Brand Name Beijing VP
Certification ISO Certificate; 3A Certificate
Model Number Customized according to demand
Minimum Order Quantity 1 set
Packaging Details Wooden Case
Delivery Time 60 days
Payment Terms T/T
Supply Ability 30 Set/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weighs 14KG Package Size 45*30*20
Condition New Pressure Range 0.1～31 Bar
Capacity 0.01～238 M3/h Material 304SS
High Light

SS Rotary Lobe Pump

,

Sanitary Rotary Lobe Pump

,

Condiments Sanitary Rotary Lobe Pump
Leave a Message
Product Description

R0200P - 30 Sets per Month - BJVP Rotary Lobe Pump



Overview:



BJVP Rotary lobe pumps are the mainstay of many hygienic fluid handling applications where gentle handling & cleanability are of utmost importance. These pumps have a wide range of displacements, good solids handling capabilities, and low shear characteristics across a wide range of product viscosities. The non-contacting pumping principle for RLPs means no metal-on-metal contact, limiting pump wear regardless of product viscosity.





Parameters:



Port size 1.5”-8”
Capacity 0.01～238 m3/h
Pressure range 0.1～31 Bar
Temperature -20～180℃
Viscosity 0.1～1,000,000 cSt
Material D.I ,WCB,304SS,316SS,316L,Duplex SS
Port Type ASME or DIN Flanges , NPT ,SAE ,Tri-clamps,SMS



Application:



Chemicals,dairy products, non-staple food processing, condiments, cosmetics, automotive paint, ink and other industrial applications.



Character:



Exquisite design and advanced quality control, VP lobe pump has strong reliability and applicability.



The mechanical seal can be removed from the front;Easy maintenance and high efficient repair.Rotor without dead angle is infrequent to be stuck, suitable for all kinds of abbrasive,low viscosity or high viscosity application.



Anti-shearing, Large liquid cavity, smooth transport, can be clean-in-place, easy to maintenance. VP lobe pump is suitable for chemicals, food and beverage and pharmaceutical industry. Multi-options for contact materials. The ports can be installed vertically or horizontally.

Available Solution:



Radial double seal design,can enlarge the seal life for any serious application.



Jacket is available for high temperature request.



Picture:

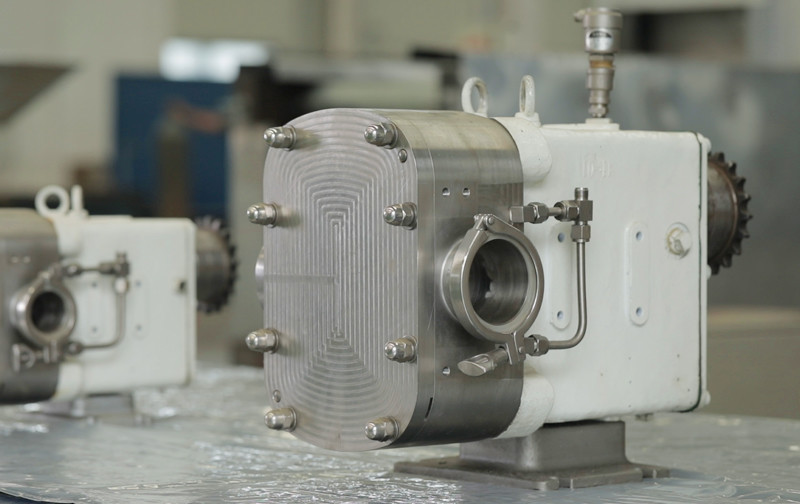

SS Sanitary Rotary Lobe Pump Condiments Hygienic Fluid Handling 0
