White Twin Lobe Pump NPT SAE Two Lobe Rotary Pump 2.6m3/H Flowmeter

  • White Twin Lobe Pump NPT SAE Two Lobe Rotary Pump 2.6m3/H Flowmeter
Brand Name Beijing VP
Minimum Order Quantity 1 set
Packaging Details Wooden Case
Delivery Time 60 days
Payment Terms T/T
Supply Ability 30 Set/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color White Size 1.5''
Condition New Temperature -20～180℃
Viscosity 0.1～1,000,000 CSt Port Type ASME Or DIN Flanges , NPT ,SAE ,Tri-clamps,SMS
High Light

automotive paint twin lobe pumps

,

automotive paint twin lobe pump

,

automotive paint twin lobe pump NPT
Leave a Message
Product Description

R0150P - 2.6m3/h Flowmeter - BJVP Rotary Lobe Pump



Overview:



Rotary Lobe Pump is a positive displacement pump, which has two rotors in the pump head. The two rotors fixed on two shafts and rotate syn-chronically in counter direction. The rotation creates vacuum volume on the inlet side. The liquid is sucked into the pump head and travels around in the chamber between the rotor and the pump head casing, and is forced out on the outlet side.



Parameters:



Port size 1.5”-8”
Capacity 0.01～238 m3/h
Pressure range 0.1～31 Bar
Temperature -20～180℃
Viscosity 0.1～1,000,000 cSt
Material D.I ,WCB,304SS,316SS,316L,Duplex SS
Port Type ASME or DIN Flanges , NPT ,SAE ,Tri-clamps,SMS



Application:



Chemicals,dairy products, non-staple food processing, condiments, cosmetics, automotive paint, ink and other industrial applications.



Character:



Exquisite design and advanced quality control, VP lobe pump has strong reliability and applicability.



The mechanical seal can be removed from the front;Easy maintenance and high efficient repair.Rotor without dead angle is infrequent to be stuck, suitable for all kinds of abbrasive,low viscosity or high viscosity application.



Anti-shearing, Large liquid cavity, smooth transport, can be clean-in-place, easy to maintenance. VP lobe pump is suitable for chemicals, food and beverage and pharmaceutical industry. Multi-options for contact materials. The ports can be installed vertically or horizontally.

Available Solution:



Radial double seal design,can enlarge the seal life for any serious application.



Jacket is available for high temperature request.



Picture:

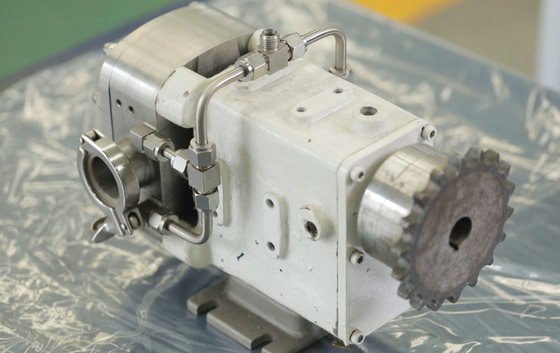

White Twin Lobe Pump NPT SAE Two Lobe Rotary Pump 2.6m3/H Flowmeter 0
