Strong Foothold Drum Decanting System High Viscosity Air Purging

  • Strong Foothold Drum Decanting System High Viscosity Air Purging
  • Strong Foothold Drum Decanting System High Viscosity Air Purging
Place of Origin Beijing, China
Brand Name Beijing VP
Certification ISO Certificate; 3A Certificate
Model Number Customized according to demand
Minimum Order Quantity 1
Packaging Details s
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Showroom Location None Temperature Range 40℃~130℃
Full Time In Automatic Mode Less Than 6 Min/drum Lance Bottom Valve, 3 Level For Decanting/rinsing/close.
Control System DDU Can Operate From The HMI And Communicate With The DCS Temprature 40℃~130℃
Highlight

Strong Foothold Drum Decanting System

,

Drum Decanting System High Viscosity

,

Air Purging Drum Decanting System
Leave a Message
Product Description

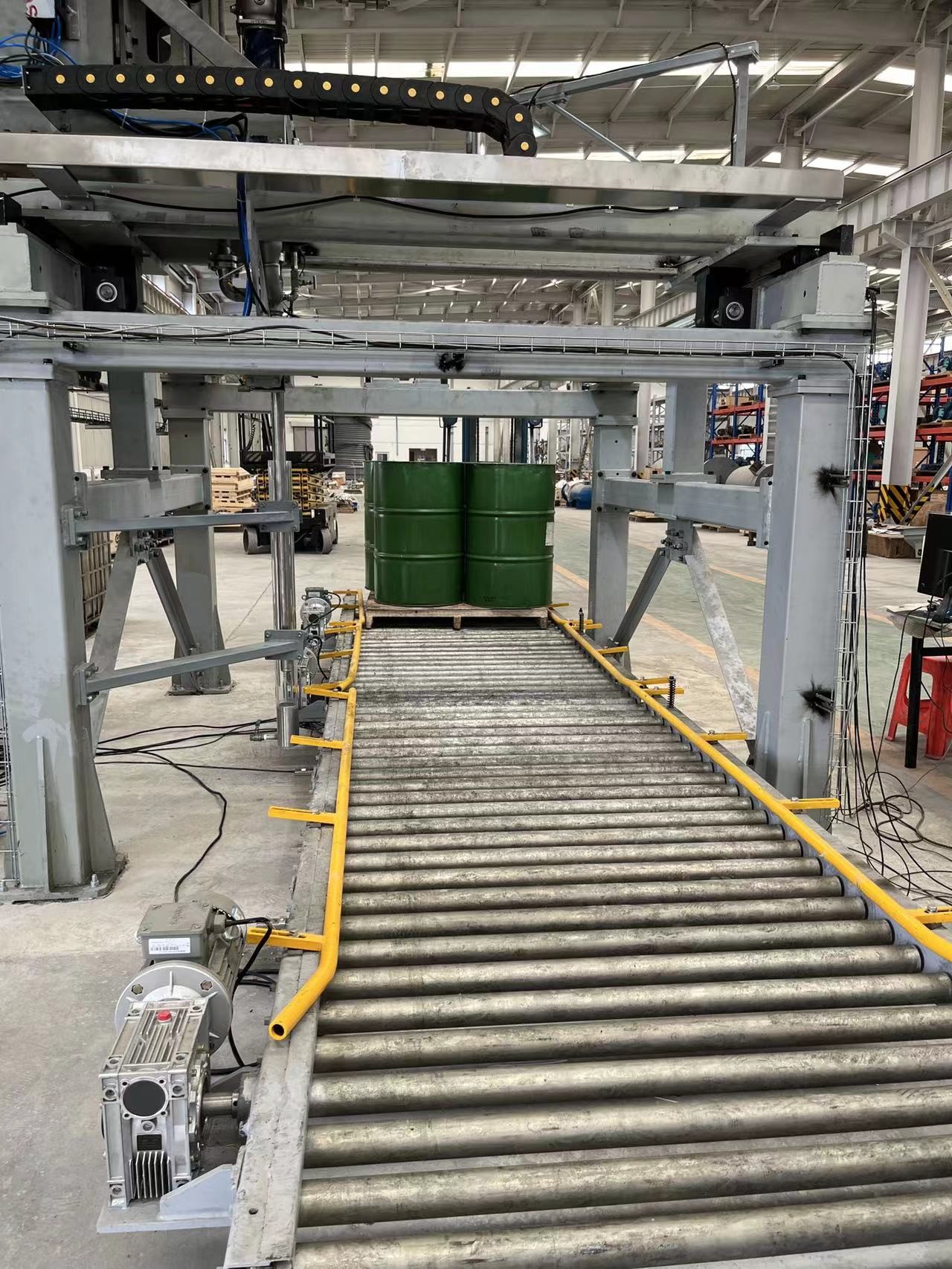

Stong Foothold - Prominent Manufacturer - Drum Decanting Unit - BJVP​



Overview:



Our vision to excel and establish a strong foothold in the market has assisted us to evolve as a prominent manufacturer and supplier of Drum Decanting Units(DDU). These units are used in lube oil blending plants for decanting and precise dosing of high quality additive components from drums or containers. The units comprise of decanting lance, roller conveyor, loading platform, rinsing tank, blender, pumps and interconnecting process pipework. Drum Decanting Units(DDU) reduce blend variation, maximize additive usage, and eliminate manual errors with high accuracy dosing systems. The units execute complete transfers with tilting devices for slanting drums.

*BJVP has the patent of VP Drum Decanting Unit.



Parameters:



Standard barrel capacity 200L barrel/IBC
Empty bucket residual amount less than 0.5kg after rinsing 200L drum
Unloading speed 6-10 m3/h
Full time in automatic mode less than 6 min/drum
System pressure 16bar
Temperature range 40℃~130℃
Viscosity range Up to 2,000 cps
Lance

Bottom Valve, 3 level for decanting/rinsing/close.

Lance can trace liquid level automatically.
Control system DDU can operate from the HMI and communicate with the DCS
Field display Input parameters, real-time display of weight of rinsing tank and additives, alarm indicator, emergency stop button
Rinsing oil tank with heating jacket and insulation
Gross weight about 2550 kg



Advantages:

  • Exact, reliable and reproducible dosing of additives into the production process
  • Saving additives by emptying the drums completely
  • No waste oil in the production process
  • No cross - contamination by cleaning the drum and lance by hot rinse oil

Main Functions:

  • Decanting additive drums
  • Rinsing drums
  • Rinsing lance
  • Emptying rinsing tank
  • Air purging

Applications:

  • Petrochemical
  • Refinery
  • Lubricant Oil
  • Additives
  • Inks
  • Sanitary industry
  • Pharmaceutical industry

F&Q:



Q1: What can DDU do in process transporation?

A: BJVP Drum Decanting Unit (DDU) System can deant, rinse, weigh at the end of the decating, lance can trace the liquid level.

Q2: What is VP Drum Decanting Unit?

A: VP Drum Decanting Units are a mechanized and automated tools to add small volume additives into a blender. They are equipped with conveyor belts, a drum weighing platform scale, a concentric lance to both withdraw additive and rinse empty drums and a weighed, heated, rinse tank to provide rinsing stock for the drums to the blending kettles. By automating dosing, rinsing, and transferring you can increase efficiency and safety with our Drum Decanting Units.

Q3: Where can this pigging system be used?

A: BJVP pigging equipment can be widely used in petrochemical, lubricant oil, additives, pharmaceutical industry and other industry applications.



For any further queries / sales inquiries, please contact with us on....
