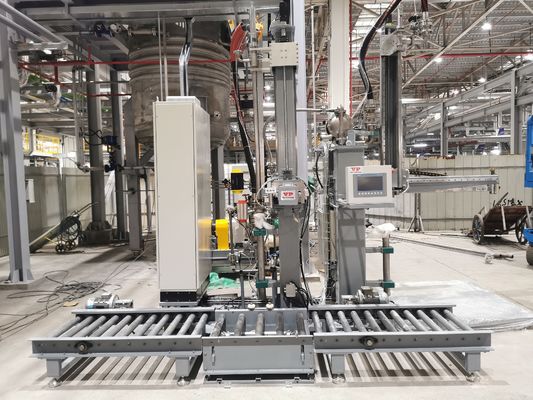

Pre Programmed Drum Decanting System DDU IBC Decanting System
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Packaging Details | s |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Overall Weight | About 2550kg | Standard Barrel Capacity | 200L Barrel/ton Box |
|---|---|---|---|
| Unloading Speed | 6m³/h | System Pressure | 16bar |
| Extraction Gun | The Liquid Level Can Be Tracked Automatically | Control Display | Real-time Display Of Weight Of Tank |
| High Light | Pre Programmed Drum Decanting System,Drum Decanting System DDU,DDU IBC Decanting System |
||
Product Description
DDU , Pre-programmed , Patented - VP Drum Decanting Unit - BJVP
Overview:
The BJVP Drum Decanting Unit is designed to automate the process of decanting high value additives from drums or IBCs, into a blending tank. Favoured by lube oil manufacturers, these units offer levels of precision, repeatability and safety that are extremely difficult to match manually. Pre-programmed recipes are selected using the full colour touch screen HMI, and on screen instructions guide the operator safely through each stage of the process. The drum can be tilted to ensure that maximum product removal is achieved. The drum is then rinsed with hot base oil to ensure that product wastage is minimised. Furthermore, in the rinsing kettle hot oil is used to flush the lance of any remaining product, and minimise the opportunity for cross contamination.
*BJVP has the patent of VP Drum Decanting Unit.
Parameters:
| Standard barrel capacity | 200L barrel/IBC |
| Empty bucket residual amount | less than 0.5kg after rinsing 200L drum |
| Unloading speed | 6-10 m3/h |
| Full time in automatic mode | less than 6 min/drum |
| System pressure | 16bar |
| Temperature range | 40℃~130℃ |
| Viscosity range | Up to 2,000 cps |
| Lance |
Bottom Valve, 3 level for decanting/rinsing/close. Lance can trace liquid level automatically. |
| Control system | DDU can operate from the HMI and communicate with the DCS |
| Field display | Input parameters, real-time display of weight of rinsing tank and additives, alarm indicator, emergency stop button |
| Rinsing oil tank | with heating jacket and insulation |
| Gross weight | about 2550 kg |
Advantages:
- Exact, reliable and reproducible dosing of additives into the production process
- Saving additives by emptying the drums completely
- No waste oil in the production process
- No cross - contamination by cleaning the drum and lance by hot rinse oil
Main Functions:
- Decanting additive drums
- Rinsing drums
- Rinsing lance
- Emptying rinsing tank
- Air purging
Applications:
- Petrochemical
- Refinery
- Lubricant Oil
- Additives
- Inks
- Sanitary industry
- Pharmaceutical industry
F&Q:
Q1: What can DDU do in process transporation?
A: BJVP Drum Decanting Unit (DDU) System can deant, rinse, weigh at the end of the decating, lance can trace the liquid level.
Q2: What is VP Drum Decanting Unit?
A: VP Drum Decanting Units are a mechanized and automated tools to add small volume additives into a blender. They are equipped with conveyor belts, a drum weighing platform scale, a concentric lance to both withdraw additive and rinse empty drums and a weighed, heated, rinse tank to provide rinsing stock for the drums to the blending kettles. By automating dosing, rinsing, and transferring you can increase efficiency and safety with our Drum Decanting Units.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in petrochemical, lubricant oil, additives, pharmaceutical industry and other industry applications.
For any further queries / sales inquiries, please contact with us on....
