| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP Co., Ltd |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Finishing Pipe Pigging System | Size 1.5” ~8” | Standard PIG Catcher Size | 8” And Above |
|---|---|---|---|
| Color | Customized By Users | Size | Customized By Users |
| Name | Automated Pigging System | Condition | New |
| Highlight | Liquid HPS Pigging Systems,Piggable Product Recovery Systems,HPS Pigging Systems Piggable |
||
Product Description
Free of Residual - Provide Spare Parts - Pigging System for processing liquid - BJVP
Overview:
BJVP provides design and manufacturing engineering services from manual to fully automated pigging system( product recovery systems). The scope of services includes individual components and complete system, providing process design, automation system implementation, pipeline installation and construction, and personnel trainning and production supervision management. In addition, we also provide spare parts services for your equipment, of course, also the maintenance sevices to ensure the safe and trouble free operation of your plant.
Characteristics:
The following functions can be realized through Pigging
- Optimal use of resources
- Increase yields
- High-accuracy pipe Pigging System
- Reduce flush waste
- Save time and money
- Reduce contamination risks, free of residual
- Changeable lips of pig can minimize the cost of consumer.
- Increased economic efficiency in production
Parameters:
|
Port Type |
ASME B16.5 RF |
| Pipe Size | 1.5”~8” |
| Pressure Standard | ANSI 150# |
| Material | WCB,CF8,CF8M,Alloy |
| Liquid Viscosity | 0.1～440,000 cst |
| Liquid Temperature | -52～380℃ |
| Product Category |
ASME B16.5 RF Launcher Receiver Pig Stop T-way valve Three-way distribution valve 5D elbows Pig Pigging line Electric cabinet Control System |

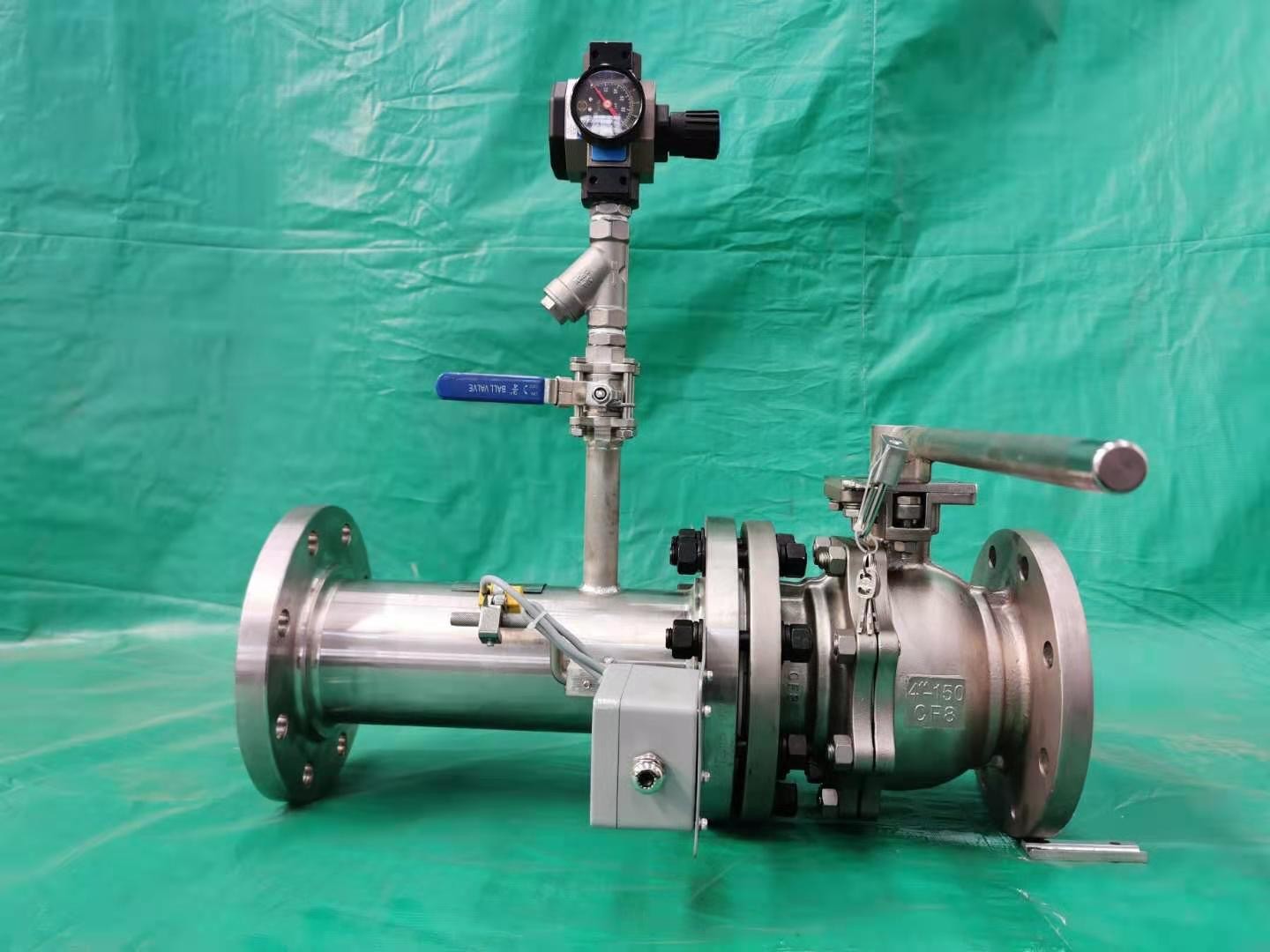

Pictures:
Applications:
- Chemical product
- Pier location product
- Manual & automatic control
- Pigging relevant accessories.
F&Q:
Q1: What can pigging system do in pipeline?
A: BJVP Pigging System can use the pig to clean the pipe line. There is no redidue and contamination between the different kind of liquid sharing the same pipe.
Q2: What is pigging equipment?
A: BJVP pigging equipment includes items such as high finishing pipe Pigging System, pig launcher/ receiver, middle station, pig detectors, pig, etc.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in Lubricants and greases, paints and varnishes, special chemicals, perfumes and other industry applications.
Q4: How do pigs clean the pipelines?
A: Pig is pushed by forced air from the launcher to receiver, so the product and any residues in pipeline will be pushed out of the pipeline by pig.
