Modular Skid Pipeline Launcher Receiver Skid Mounted Pigging System
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP Co., Ltd |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Automated Pigging System | Pressure Standard | ANSI 150# |
|---|---|---|---|
| Liquid Viscosity | 0.1～440,000 Cst | Seals | NBR, FKM, PTFE, AU, VMQ, EPDM (other Materials On Request) |
| Port Type | ASME B16.5 RF | Showroom Location | None |
| Highlight | modular skid automated pigging systems,Modular Skid Pipeline Launcher Receiver,Pipeline Launcher Receiver Skid Mounted |
||
Product Description
Modular Skid Pig Launcher & Recevier Systems - Automated Pigging System - BJVP
Overview:
BJVP’s modular pigging stations provide all you need on a single skid. BJVP designs mobile or permanent frames with adjustable height mechanisms, so moving from one place to another and using it for multiple pipelines is possible.
They are easy to transport from one location to another. Modules can be designed as per the shipping method (sea, road and even air) and the system can be customizable as per working environment to protect against rush weather effects or robbery.
Traditional pigging system contraction is costly, takes time, and safety concerns are high, however BJVP’s mobile modular skid pig launcher & receiver plug and play systems can reduce your project cost and time drastically in addition to eliminating site accidents. Contractors do not need to deal with site installation of such complicated systems.
Characteristics:
The following functions can be realized through Pigging
- Optimal use of resources
- Increase yields
- High-accuracy pipe Pigging System
- Reduce flush waste
- Save time and money
- Reduce contamination risks, free of residual
- Changeable lips of pig can minimize the cost of consumer.
- Increased economic efficiency in production
Parameters:
|
Port Type |
ASME B16.5 RF |
| Pipe Size | 1.5”~8” |
| Pressure Standard | ANSI 150# |
| Material | WCB,CF8,CF8M,Alloy |
| Liquid Viscosity | 0.1～440,000 cst |
| Liquid Temperature | -52～380℃ |
| Product Category |
ASME B16.5 RF Launcher Receiver Pig Stop T-way valve Three-way distribution valve 5D elbows Pig Pigging line Electric cabinet Control System |

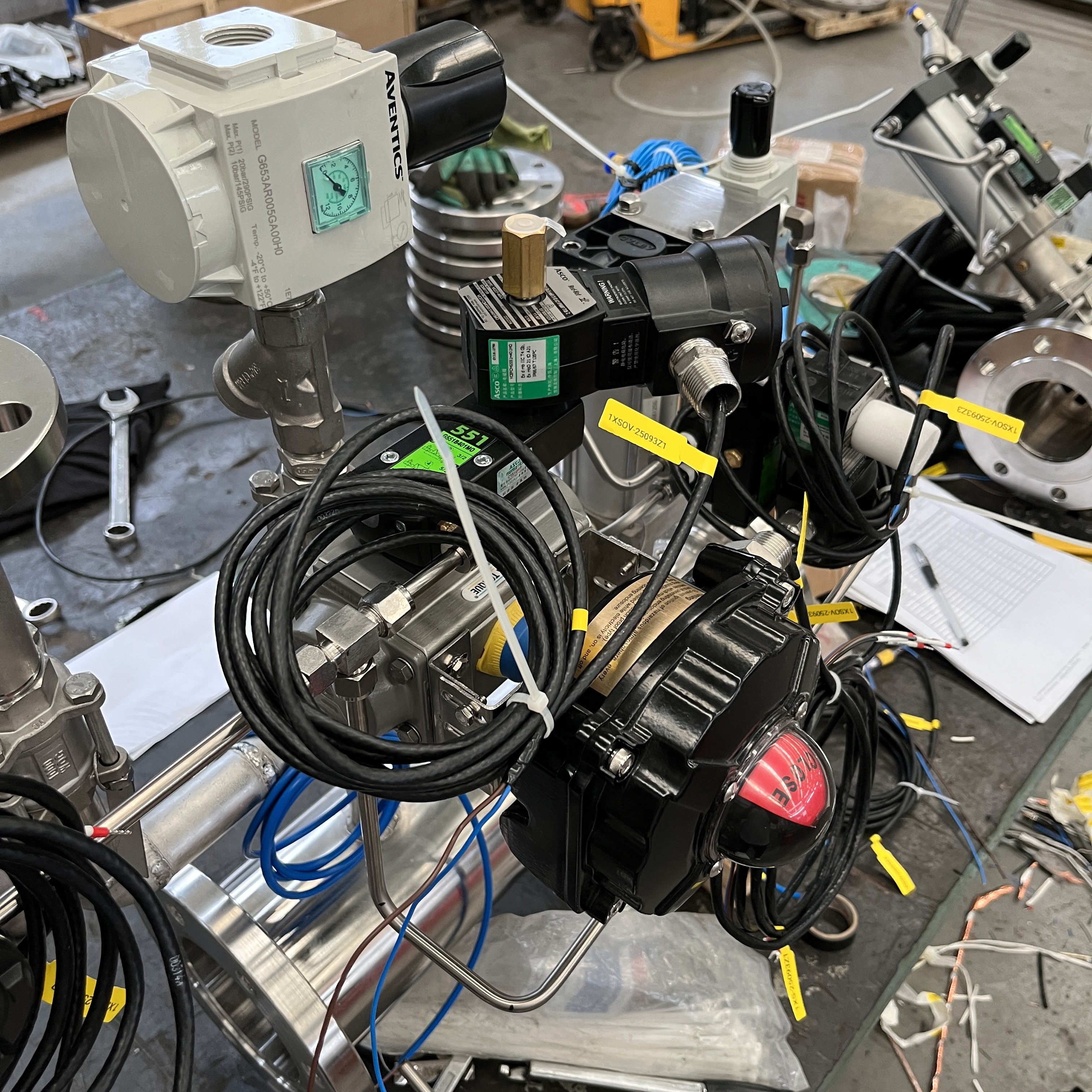

Pictures:
Applications:
- Chemical product
- Pier location product
- Manual & automatic control
- Pigging relevant accessories.
F&Q:
Q1: What can pigging system do in pipeline?
A: BJVP Pigging System can use the pig to clean the pipe line. There is no redidue and contamination between the different kind of liquid sharing the same pipe.
Q2: What is pigging equipment?
A: BJVP pigging equipment includes items such as high finishing pipe Pigging System, pig launcher/ receiver, middle station, pig detectors, pig, etc.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in Lubricants and greases, paints and varnishes, special chemicals, perfumes and other industry applications.
Q4: How do pigs clean the pipelines?
A: Pig is pushed by forced air from the launcher to receiver, so the product and any residues in pipeline will be pushed out of the pipeline by pig.
