Customized Automatic Pigging System Pipe Cleaning Pigging Systems
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP Co., Ltd |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Beijing, China | Pressure Standard | ANSI 150# |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Seals | NBR, FKM, PTFE, AU, VMQ, EPDM (other Materials On Request) |
| Flanges | DIN Or ANSI | Marketing Type | New Product |
| Highlight | Customized Automatic Pigging System,Pipe Cleaning Pigging Systems,Automatic Pigging System Pipe Cleaning |
||
Product Description
Easy and Efficient Automatic Pigging System - Automated Pigging System - BJVP
Overview:
Based on the powerful Siemens PLC as the control platform, BJVP provides independent or integrated automatic control system for pigging system. We can provide cost-effective automatic pigging control system and reliable system components with touch screen as man-machine interface.
BJVP have an experienced software professional team, ready to provide you with factory PLC and HMI programming requirements. We focus on Siemens control equipment. Our automatic pig head feeding system is controlled by PLC and adopts HMI or SCADA system. Using our rich experience and process system knowledge, we have developed and compiled a completely flexible, reliable and tested pigging control system and software. Although our focus is on automatic pigging process control, we can also develop systems to control other production processes in your plant.
Characteristics:
The following functions can be realized through Pigging
- Optimal use of resources
- Increase yields
- High-accuracy pipe Pigging System
- Reduce flush waste
- Save time and money
- Reduce contamination risks, free of residual
- Changeable lips of pig can minimize the cost of consumer.
- Increased economic efficiency in production
Parameters:
|
Port Type |
ASME B16.5 RF |
| Pipe Size | 1.5”~8” |
| Pressure Standard | ANSI 150# |
| Material | WCB,CF8,CF8M,Alloy |
| Liquid Viscosity | 0.1～440,000 cst |
| Liquid Temperature | -52～380℃ |
| Product Category |
ASME B16.5 RF Launcher Receiver Pig Stop T-way valve Three-way distribution valve 5D elbows Pig Pigging line Electric cabinet Control System |

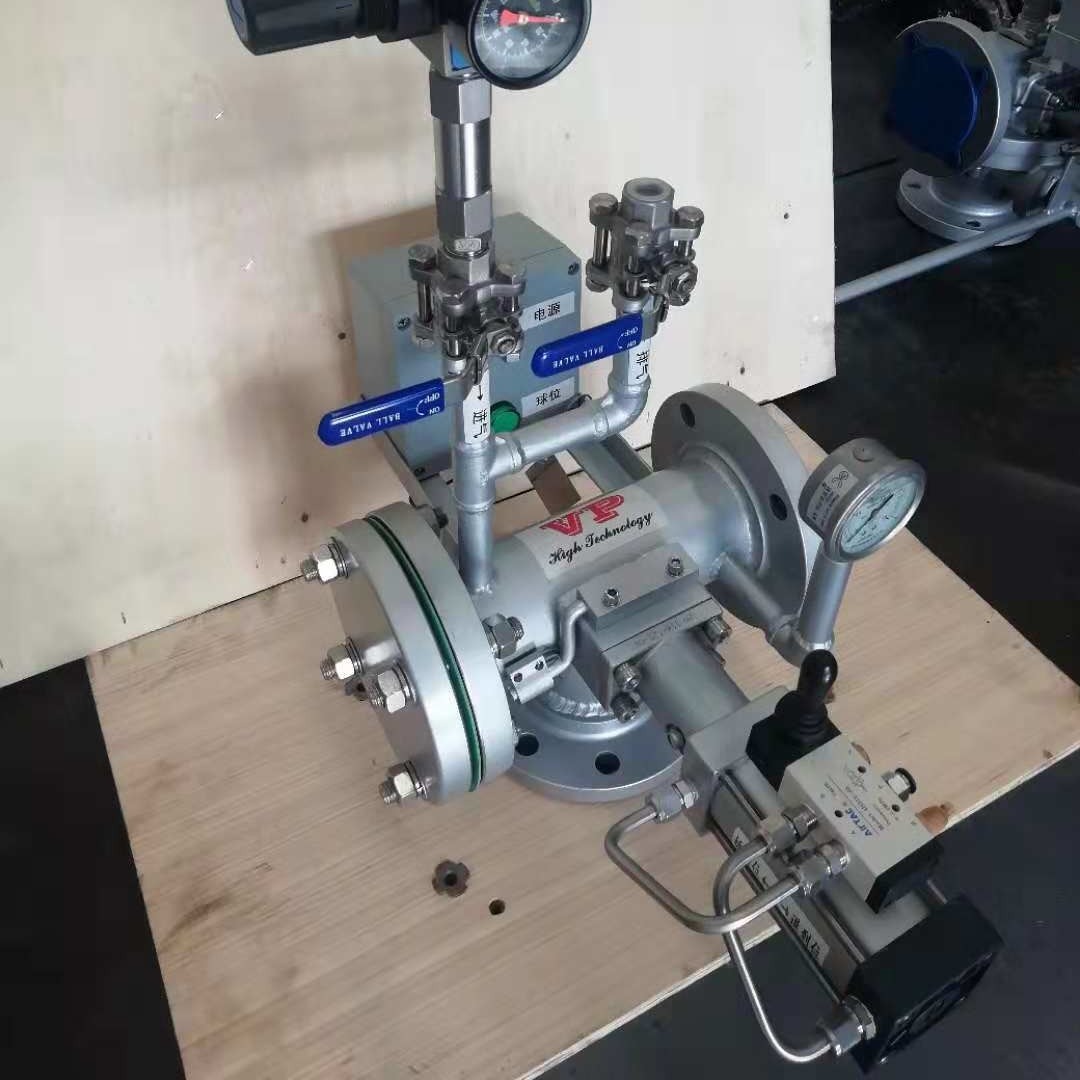

Pictures:
Applications:
- Chemical product
- Pier location product
- Manual & automatic control
- Pigging relevant accessories.
F&Q:
Q1: What can pigging system do in pipeline?
A: BJVP Pigging System can use the pig to clean the pipe line. There is no redidue and contamination between the different kind of liquid sharing the same pipe.
Q2: What is pigging equipment?
A: BJVP pigging equipment includes items such as high finishing pipe Pigging System, pig launcher/ receiver, middle station, pig detectors, pig, etc.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in Lubricants and greases, paints and varnishes, special chemicals, perfumes and other industry applications.
Q4: How do pigs clean the pipelines?
A: Pig is pushed by forced air from the launcher to receiver, so the product and any residues in pipeline will be pushed out of the pipeline by pig.
