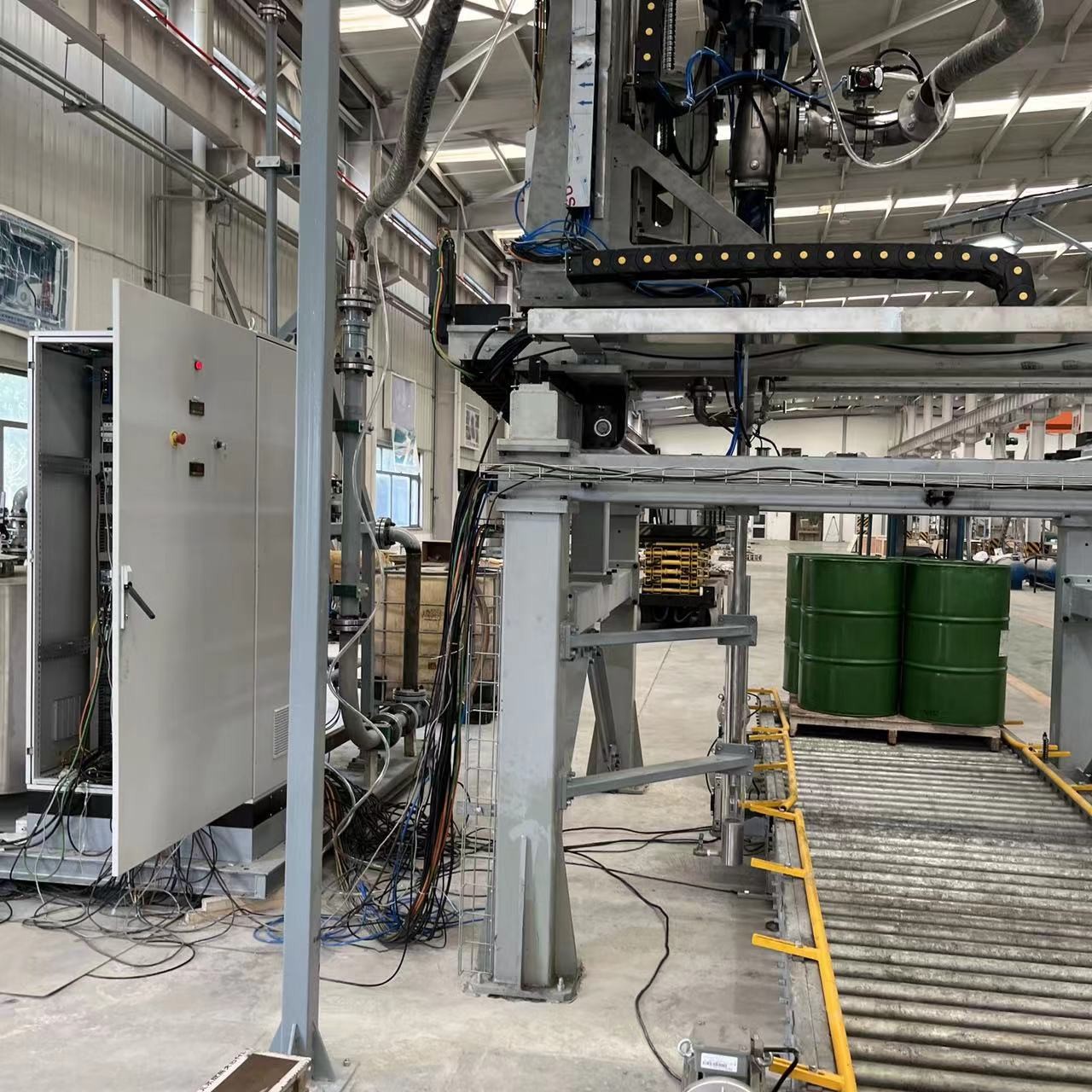

BJVP 16 Bar Drum Decanting System For Chemicals Industry
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Packaging Details | s |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Overall Weight | About 2550kg | Standard Barrel Capacity | 200L Barrel/ton Box |
|---|---|---|---|
| Unloading Speed | 6m³/h | System Pressure | 16bar |
| Full Automation Batch Speed | Less Tan 6 Min/BBL | Temprature | 40℃~130℃ |
| Highlight | Drum Decanting System,16 Bar Drum Decanting System,BJVP Drum Decanting System |
||
Product Description
Precise , Standard, Patented - VP Drum Decanting Unit - BJVP
Overview:
BJVP has brought to the market the High Viscosity Drum Decanting System, designed to pump and dose highly viscous liquids stored in drums and incorporating them into the formulation process. Widely used in the chemicals industry to store high-value raw materials and additives, drums and barrels regularly require emptying, dosing, and rinsing.
*BJVP has the patent of VP Drum Decanting Unit.
Parameters:
| Standard barrel capacity | 200L barrel/IBC |
| Empty bucket residual amount | less than 0.5kg after rinsing 200L drum |
| Unloading speed | 6-10 m3/h |
| Full time in automatic mode | less than 6 min/drum |
| System pressure | 16bar |
| Temperature range | 40℃~130℃ |
| Viscosity range | Up to 2,000 cps |
| Lance |
Bottom Valve, 3 level for decanting/rinsing/close. Lance can trace liquid level automatically. |
| Control system | DDU can operate from the HMI and communicate with the DCS |
| Field display | Input parameters, real-time display of weight of rinsing tank and additives, alarm indicator, emergency stop button |
| Rinsing oil tank | with heating jacket and insulation |
| Gross weight | about 2550 kg |
Advantages:
- Exact, reliable and reproducible dosing of additives into the production process
- Saving additives by emptying the drums completely
- No waste oil in the production process
- No cross - contamination by cleaning the drum and lance by hot rinse oil
Main Functions:
- Decanting additive drums
- Rinsing drums
- Rinsing lance
- Emptying rinsing tank
- Air purging
Applications:
- Petrochemical
- Refinery
- Lubricant Oil
- Additives
- Inks
- Sanitary industry
- Pharmaceutical industry
F&Q:
Q1: What can DDU do in process transporation?
A: BJVP Drum Decanting Unit (DDU) System can deant, rinse, weigh at the end of the decating, lance can trace the liquid level.
Q2: What is VP Drum Decanting Unit?
A: VP Drum Decanting Units are a mechanized and automated tools to add small volume additives into a blender. They are equipped with conveyor belts, a drum weighing platform scale, a concentric lance to both withdraw additive and rinse empty drums and a weighed, heated, rinse tank to provide rinsing stock for the drums to the blending kettles. By automating dosing, rinsing, and transferring you can increase efficiency and safety with our Drum Decanting Units.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in petrochemical, lubricant oil, additives, pharmaceutical industry and other industry applications.
For any further queries / sales inquiries, please contact with us on....
