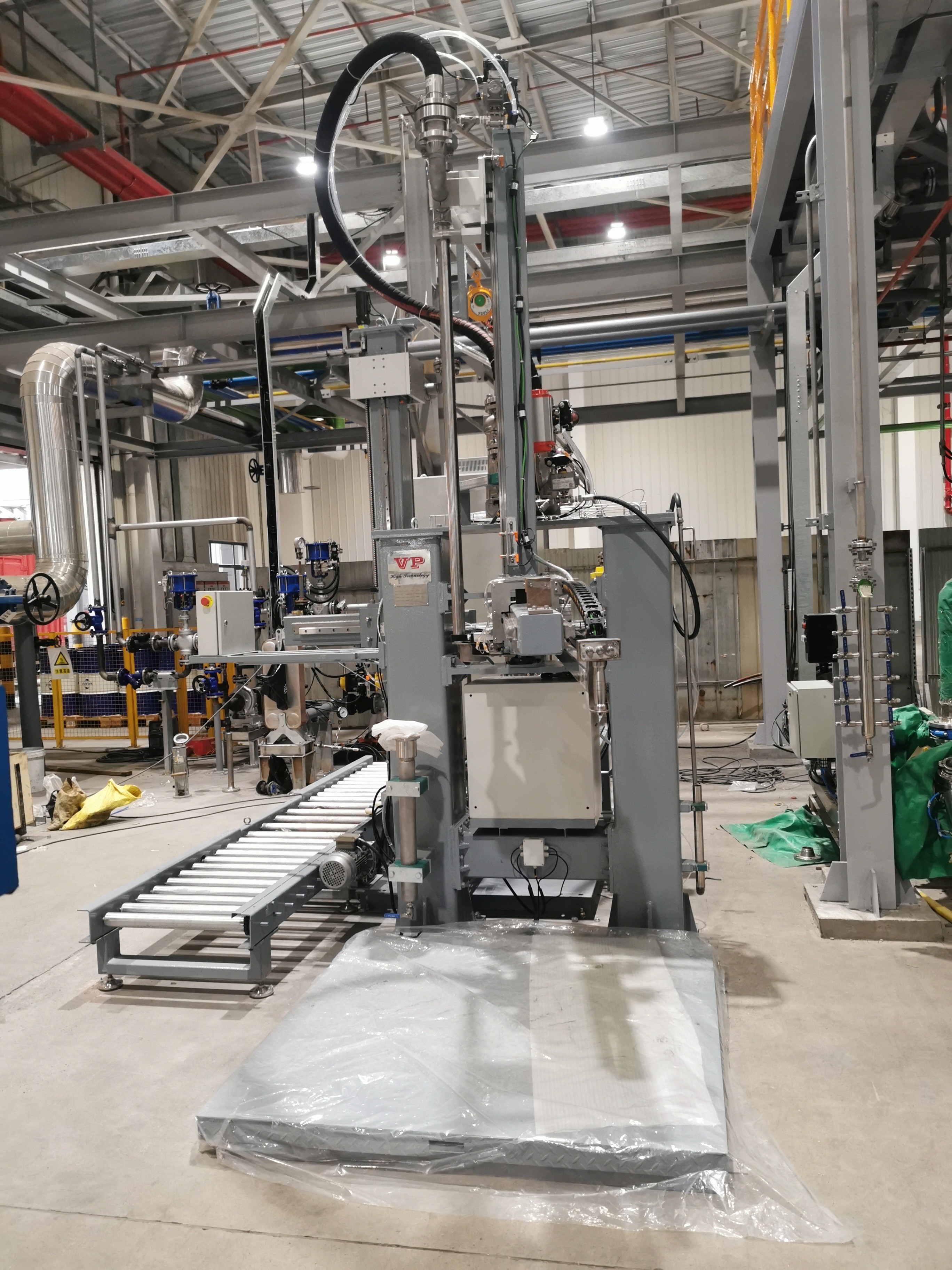

200L Barrel IBC Decanting System Fluid Solution 16 Bar Pressure

  • 200L Barrel IBC Decanting System Fluid Solution 16 Bar Pressure
  • 200L Barrel IBC Decanting System Fluid Solution 16 Bar Pressure
Place of Origin Beijing, China
Brand Name Beijing VP
Certification ISO Certificate; 3A Certificate
Model Number Customized according to demand
Minimum Order Quantity 1
Packaging Details s
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Overall Weight About 2550kg Standard Barrel Capacity 200L Barrel/ton Box
Unloading Speed 6m³/h System Pressure 16bar
Full Automation Batch Speed Less Tan 6 Min/BBL Temprature 40℃~130℃
Highlight

200l Barrel IBC Decanting System

,

IBC Decanting System Fluid Solution

,

Fluid IBC Decanting System
Leave a Message
Product Description

Fluid Solution , 200 Barrel / IBC , Patented - VP Drum Decanting Unit - BJVP​



Overview:



BJVP has brought to the market the High Viscosity Drum Decanting System, designed to pump and dose highly viscous liquids stored in drums and incorporating them into the formulation process. Widely used in the chemicals industry to store high-value raw materials and additives, drums and barrels regularly require emptying, dosing, and rinsing. Increasingly, the materials being kept within have a high viscosity level. BJVP's High Viscosity Drum Decanting System is an automated station designed to increase pumping capacity of highly viscous products by up to 20,000 centistokes and to reduce operator drum handling time by 50%. Immediately after pumping is completed, materials are automatically transferred via pigged lines to its required destination.

*BJVP has the patent of VP Drum Decanting Unit.



Parameters:



Standard barrel capacity 200L barrel/IBC
Empty bucket residual amount less than 0.5kg after rinsing 200L drum
Unloading speed 6-10 m3/h
Full time in automatic mode less than 6 min/drum
System pressure 16bar
Temperature range 40℃~130℃
Viscosity range Up to 2,000 cps
Lance

Bottom Valve, 3 level for decanting/rinsing/close.

Lance can trace liquid level automatically.
Control system DDU can operate from the HMI and communicate with the DCS
Field display Input parameters, real-time display of weight of rinsing tank and additives, alarm indicator, emergency stop button
Rinsing oil tank with heating jacket and insulation
Gross weight about 2550 kg



Advantages:

  • Exact, reliable and reproducible dosing of additives into the production process
  • Saving additives by emptying the drums completely
  • No waste oil in the production process
  • No cross - contamination by cleaning the drum and lance by hot rinse oil

Main Functions:

  • Decanting additive drums
  • Rinsing drums
  • Rinsing lance
  • Emptying rinsing tank
  • Air purging

Applications:

  • Petrochemical
  • Refinery
  • Lubricant Oil
  • Additives
  • Inks
  • Sanitary industry
  • Pharmaceutical industry

F&Q:



Q1: What can DDU do in process transporation?

A: BJVP Drum Decanting Unit (DDU) System can deant, rinse, weigh at the end of the decating, lance can trace the liquid level.

Q2: What is VP Drum Decanting Unit?

A: VP Drum Decanting Units are a mechanized and automated tools to add small volume additives into a blender. They are equipped with conveyor belts, a drum weighing platform scale, a concentric lance to both withdraw additive and rinse empty drums and a weighed, heated, rinse tank to provide rinsing stock for the drums to the blending kettles. By automating dosing, rinsing, and transferring you can increase efficiency and safety with our Drum Decanting Units.

Q3: Where can this pigging system be used?

A: BJVP pigging equipment can be widely used in petrochemical, lubricant oil, additives, pharmaceutical industry and other industry applications.



For any further queries / sales inquiries, please contact with us on....
