Lubricant Industries Pigging Cleaning System Hygienic Pigging
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP Co., Ltd |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pigging Cleaning System | Applicable Industries | Chemical Product, Pier Location Product, Manual & Automatic Control, Pigging Relevant Accessories. |
|---|---|---|---|
| Material | Custuomized By Users | Machinery Test Report | Provided |
| Material | WCB,CF8,CF8M,Alloy | Port Type | ASME B16.5 RF |
| High Light | Lubricant Industries Pigging Cleaning System,Hygienic HPS Pigging,HPS Pigging Cleaning System |
||
Product Description
Why Do Companies Use Pigging? - Lubricant Industries- Pigging Cleaning System - BJVP
Why do companies use pigging?
The main reasons organisations in process industries use it is to recover product, which increases yields and reduces waste. Process industries also use pigging to remove nearly all residual product from the inside of pipes and tubing, which in turn reduces the use of cleaning fluids, uses less water, saves time, improves process efficiency and ultimately increases profits. In addition, because pipeline product recovery using pigging saves resources, it also helps towards sustainability.
Characteristics:
The following functions can be realized through Pigging
- Optimal use of resources
- Increase yields
- High-accuracy pipe Pigging System
- Reduce flush waste
- Save time and money
- Reduce contamination risks, free of residual
- Changeable lips of pig can minimize the cost of consumer.
- Increased economic efficiency in production
Parameters:
|
Port Type |
ASME B16.5 RF |
| Pipe Size | 1.5”~8” |
| Pressure Standard | ANSI 150# |
| Material | WCB,CF8,CF8M,Alloy |
| Liquid Viscosity | 0.1～440,000 cst |
| Liquid Temperature | -52～380℃ |
| Product Category |
ASME B16.5 RF Launcher Receiver Pig Stop T-way valve Three-way distribution valve 5D elbows Pig Pigging line Electric cabinet Control System |

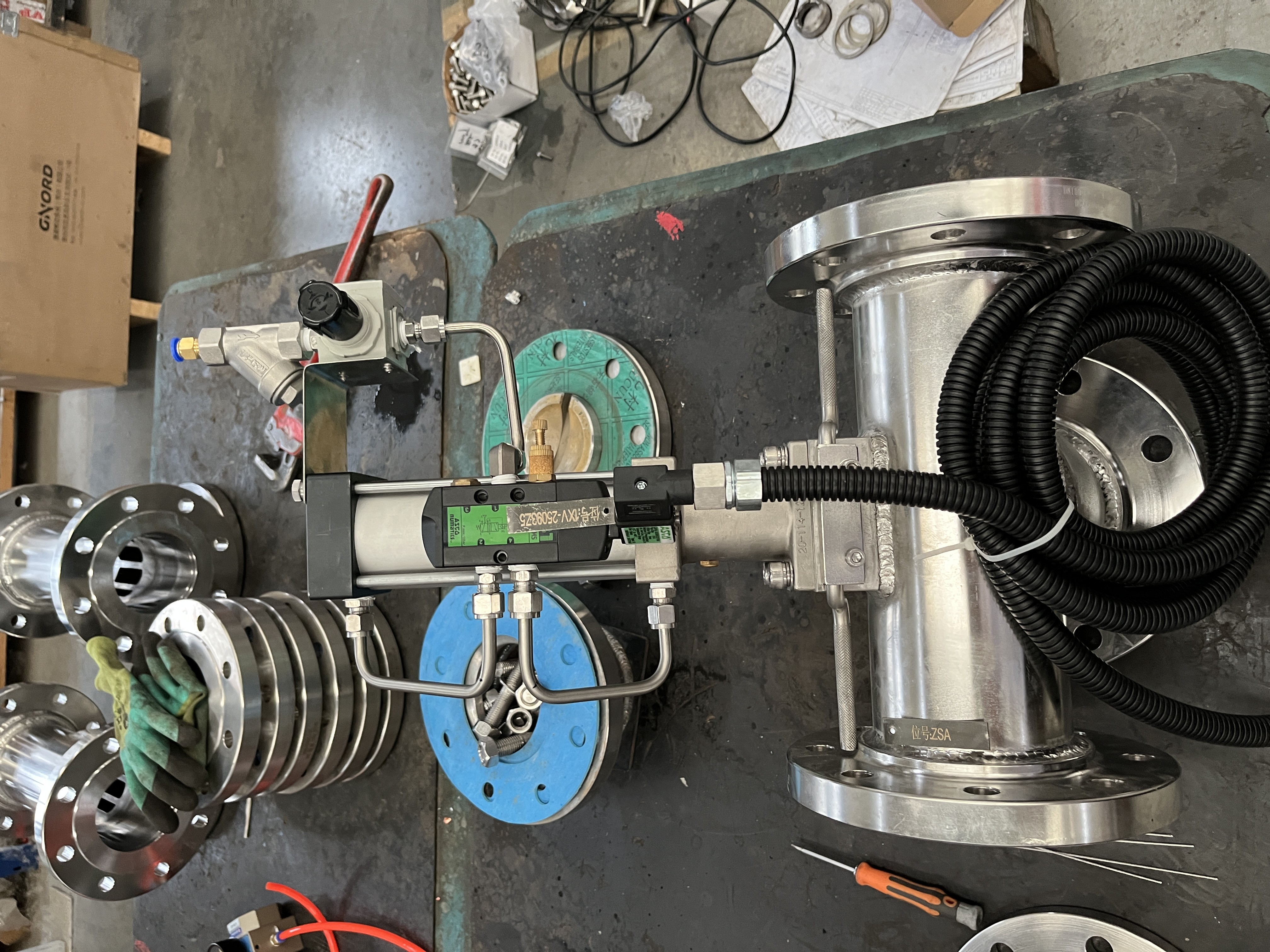

Pictures:
Applications:
- Chemical product
- Pier location product
- Manual & automatic control
- Pigging relevant accessories.
F&Q:
Q1: What can pigging system do in pipeline?
A: BJVP Pigging System can use the pig to clean the pipe line. There is no redidue and contamination between the different kind of liquid sharing the same pipe.
Q2: What is pigging equipment?
A: BJVP pigging equipment includes items such as high finishing pipe Pigging System, pig launcher/ receiver, middle station, pig detectors, pig, etc.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in Lubricants and greases, paints and varnishes, special chemicals, perfumes and other industry applications.
Q4: How do pigs clean the pipelines?
A: Pig is pushed by forced air from the launcher to receiver, so the product and any residues in pipeline will be pushed out of the pipeline by pig.
