Easily Disassemble Pipeline Pigging Systems Storing 1 Pig Installation Vessel
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP Co., Ltd |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operation Mode | Manual Or Automated | Operating Temperature | -20 ～ 80℃ |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Seals | NBR, FKM, PTFE, AU, VMQ, EPDM (other Materials On Request) |
| Flanges | DIN Or ANSI | Marketing Type | New Product |
| Highlight | easily disassemble pipeline pigging systems,vessel pipeline pigging systems,easily disassemble pigging system in pipeline |
||
Product Description
Easily Disassemble - Storing 1 Pig - Installation Vessel - Pipeline Pigging System - BJVP
Overview:
BJVP installation vessel is an equipment used for load and replace the pig, usually connect with the end of launcher and receiver. It is easy to disassemble and its’ main body can store 1 pig. Before loading the pig, lubricant is placed in the pipe of the manual installation vessel to prevent the pipe from drying out and causing difficulties in loading (taking away). To improve the efficiency and effectiveness of your lubricants and oil processing or production operation, please contact your nearest BJVP Office:
Characteristics:
The following functions can be realized through Pigging
- Optimal use of resources
- Increase yields
- High-accuracy pipe Pigging System
- Reduce flush waste
- Save time and money
- Reduce contamination risks, free of residual
- Changeable lips of pig can minimize the cost of consumer.
- Increased economic efficiency in production
Parameters:
|
Port Type |
ASME B16.5 RF |
| Pipe Size | 1.5”~8” |
| Pressure Standard | ANSI 150# |
| Material | WCB,CF8,CF8M,Alloy |
| Liquid Viscosity | 0.1～440,000 cst |
| Liquid Temperature | -52～380℃ |
| Product Category |
ASME B16.5 RF Launcher Receiver Pig Stop T-way valve Three-way distribution valve 5D elbows Pig Pigging line Electric cabinet Control System |

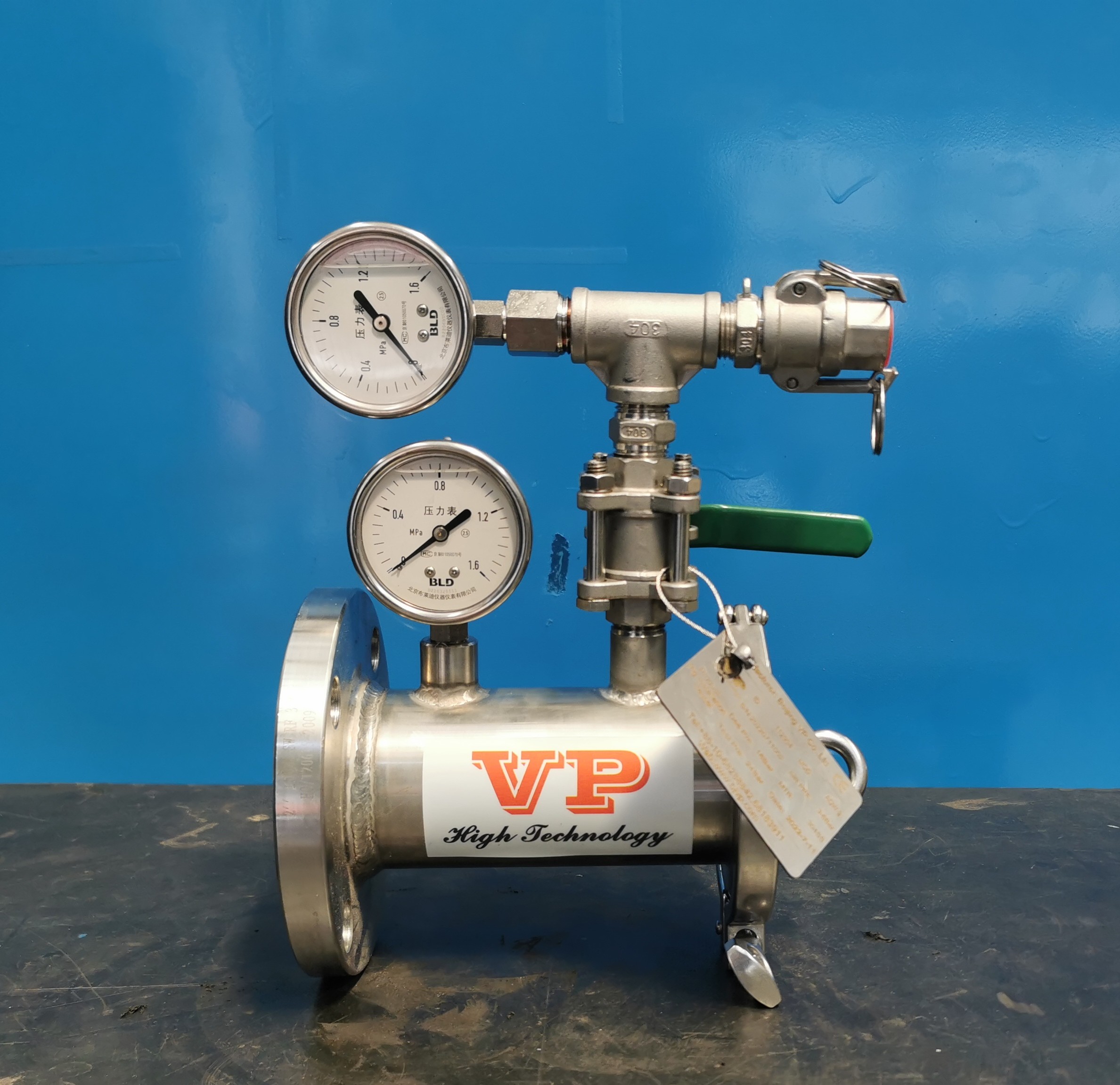

Pictures:
Applications:
- Chemical product
- Pier location product
- Manual & automatic control
- Pigging relevant accessories.
F&Q:
Q1: What can pigging system do in pipeline?
A: BJVP Pigging System can use the pig to clean the pipe line. There is no redidue and contamination between the different kind of liquid sharing the same pipe.
Q2: What is pigging equipment?
A: BJVP pigging equipment includes items such as high finishing pipe Pigging System, pig launcher/ receiver, middle station, pig detectors, pig, etc.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in Lubricants and greases, paints and varnishes, special chemicals, perfumes and other industry applications.
Q4: How do pigs clean the pipelines?
A: Pig is pushed by forced air from the launcher to receiver, so the product and any residues in pipeline will be pushed out of the pipeline by pig.
