Flexibility Offshore Pipeline Pigging Systems With Changeable Pig Lips
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP Co., Ltd |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Color | Customized By Users |
|---|---|---|---|
| Place Of Oringin | HeBei, China | Brand Name | Beijing VP Co.,Ltd |
| Certifications | ISO Certificate; 3A Certificate | Machinery Test Report | Provided |
| Highlight | Flexibility Offshore Pigging,Offshore Pipeline Pigging Systems,Changeable Pig Lips Pigging Systems |
||
Product Description
Sustainable - Professional - Pipeline Pigging System - BJVP
Flexibility - Meet Requirements - Pipeline Pigging System - BJVP
Overview:
The BJVP pigging system consists of specifically matched components that meet the requirements of the process industry.
BJVP pigging systems are continuously developed and refined to adapt to the constant changing requirements of the various industries and customers. Based on end user demands while providing flexibility, the BJVP pigging system has a modular design. The basic module allows later upgrades into an already installed system, presenting additional options at any time, without having to replace the whole system.
This process can be used in the field, for new or existing pipelines, in plants and has applications in power generation, oil and gas, agriculture, civil, infrastructure, manufacturing, chemical, as well as offshore.
Characteristics:
The following functions can be realized through Pigging
- Increase yields
- Minimum product loss
- Reduce flush waste
- Save time and money
- Reduce contamination risks, free of residual
- Changeable lips of pig can minimize the cost of consumer.
- Simplified pipe networks and reduced space.
Parameters:
| Product Catalogue |
5D elbows Pig Pigging line Pig Stop T-way valve Three-way distribution valve Electric cabinet Control System Launcher Receiver |
| Pipe Size | 1.5”~8” |
| Pressure Standard | ANSI 150# |
| Liquid Temperature | -52～380℃ |
| Liquid Viscosity | 0.1～440,000 cst |
| Material | WCB,CF8,CF8M,Alloy |
| Port Type | ASME B16.5 RF |

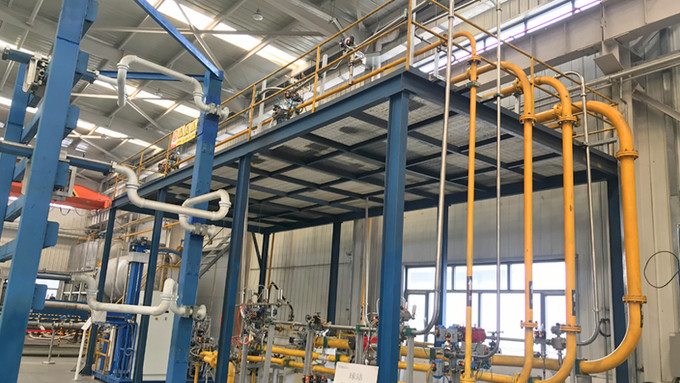

Pictures:
Applications:
- Chemical product
- Pier location product
- Manual & automatic control
- Pigging relevant accessories.
F&Q:
Q1: What can pigging system do in pipeline?
A: BJVP Pigging System can use the pig to clean the pipe line. There is no redidue and contamination between the different kind of liquid sharing the same pipe.
Q2: What is pigging equipment?
A: BJVP pigging equipment includes items such as high finishing pipe Pigging System, pig launcher/ receiver, middle station, pig detectors, pig, etc.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in Lubricants and greases, paints and varnishes, special chemicals, perfumes and other industry applications.
Q4: How do pigs clean the pipelines?
A: Pig is pushed by forced air from the launcher to receiver, so the product and any residues in pipeline will be pushed out of the pipeline by pig.
