3A Liquid Pipeline Pigging Systems Sanitary Pigging Solution
| Place of Origin | Beijing, China |
|---|---|
| Brand Name | Beijing VP Co., Ltd |
| Certification | ISO Certificate; 3A Certificate |
| Model Number | Customized according to demand |
| Minimum Order Quantity | 1 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Finishing Pipe Pigging System | Size 1.5” ~8” | Standard PIG Catcher Size | 8” And Above |
|---|---|---|---|
| Color | Customized By Users | Cross Contamination | 0 |
| Name | Pipeline Pigging System | Material | Customized By Users |
| Highlight | 3A Liquid Pipeline Pigging Systems,Sanitary HPS Pigging Solution,HPS Pipeline Pigging Systems |
||
Product Description
Free of Residual - No cross contamination - Pigging System for processing liquid - BJVP
Overview:
BJVP has over 2 decades of experience in delivering product recovery and sanitary pigging solutions to companies that process liquids. VP Pigging System is designed to thoroughly clean up the residue liquids in pipeline. The pigging system includes pig launcher, pig receiver, middle station, pig, etc. We developed various material to fit for the right application. The lip seal is separated with the pig body. Lower cost for the maintenance. BJVP pigging systems recover lost product, eliminate flush waste, minimize consumer of solvent for cleaning the pipeline, and result in consistently higher product quality. Our Pigging system will give you a rapid payback, ongoing return on investment, a clear increase in profitability and improved sustainability.
Characteristics:
The following functions can be realized through Pigging
- Increase yields
- Reduce flush waste
- Save time and money
- Reduce contamination risks, free of residual
- Changeable lips of pig can minimize the cost of consumer.
- Simplified pipe networks and reduced space.
Parameters:
| Product Category |
Launcher Receiver Pig Stop T-way valve Three-way distribution valve 5D elbows Pig Pigging line Electric cabinet Control System |
| Pipe Size | 1.5”~8” |
| Pressure Standard | ANSI 150# |
| Liquid Temperature | -52～380℃ |
| Liquid Viscosity | 0.1～440,000 cst |
| Material | WCB,CF8,CF8M,Alloy |
| Port Type | ASME B16.5 RF |

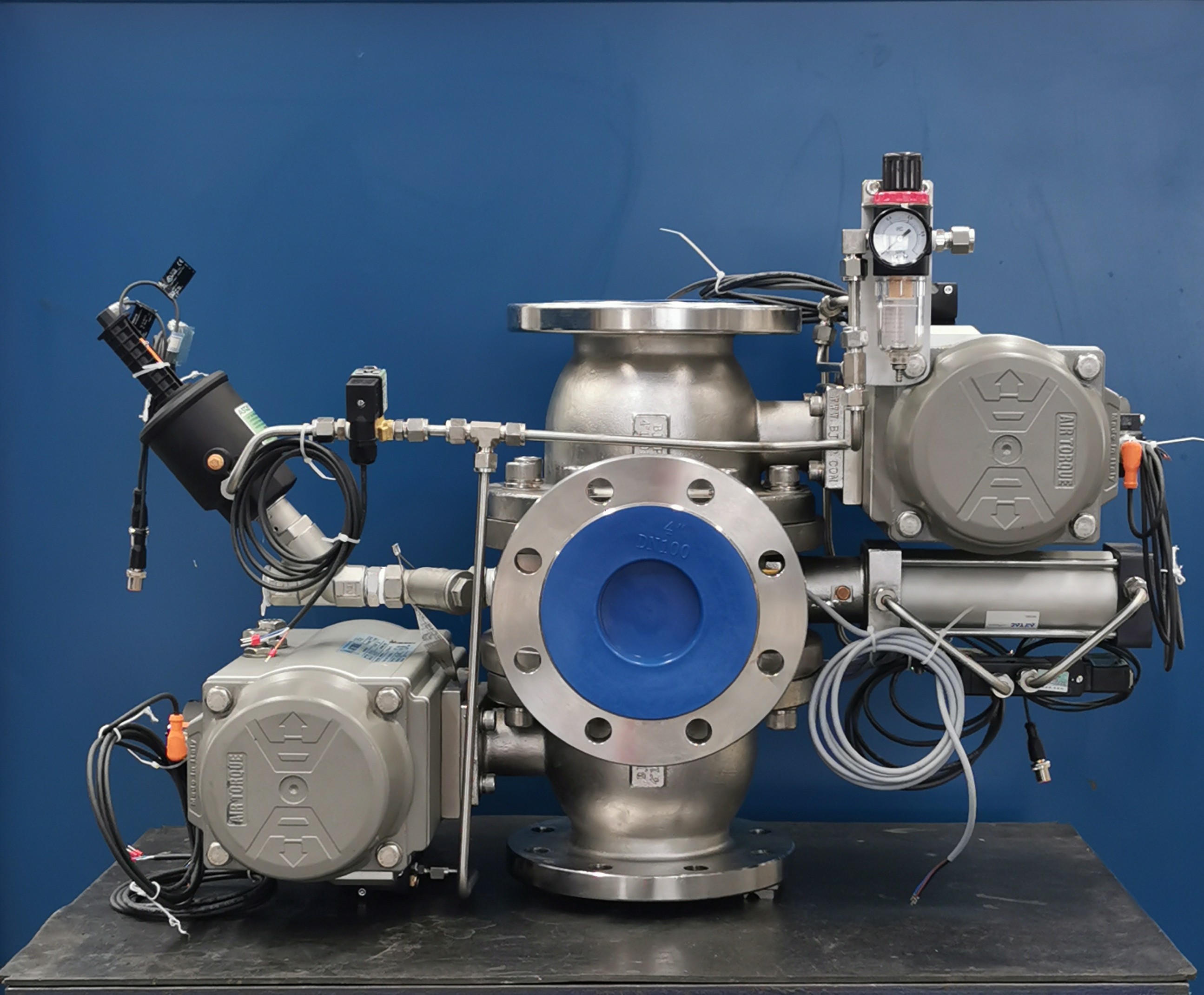

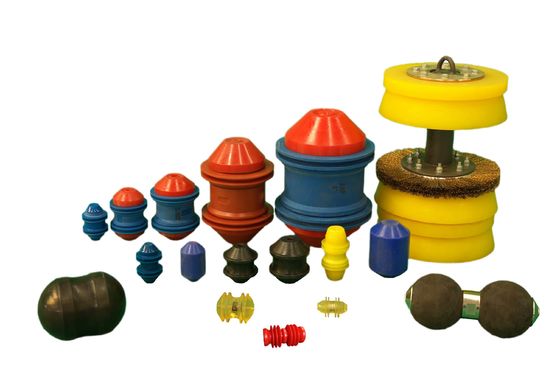

Pictures:
Applications:
- Chemical product
- Pier location product
- Manual & automatic control
- Pigging relevant accessories.
F&Q:
Q1: What can pigging system do in pipeline?
A: BJVP Pigging System can use the pig to clean the pipe line. There is no redidue and contamination between the different kind of liquid sharing the same pipe.
Q2: What is pigging equipment?
A: BJVP pigging equipment includes items such as high finishing pipe Pigging System, pig launcher/ receiver, middle station, pig detectors, pig, etc.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in Lubricants and greases, paints and varnishes, special chemicals, perfumes and other industry applications.
Q4: How do pigs clean the pipelines?
A: Pig is pushed by forced air from the launcher to receiver, so the product and any residues in pipeline will be pushed out of the pipeline by pig.
